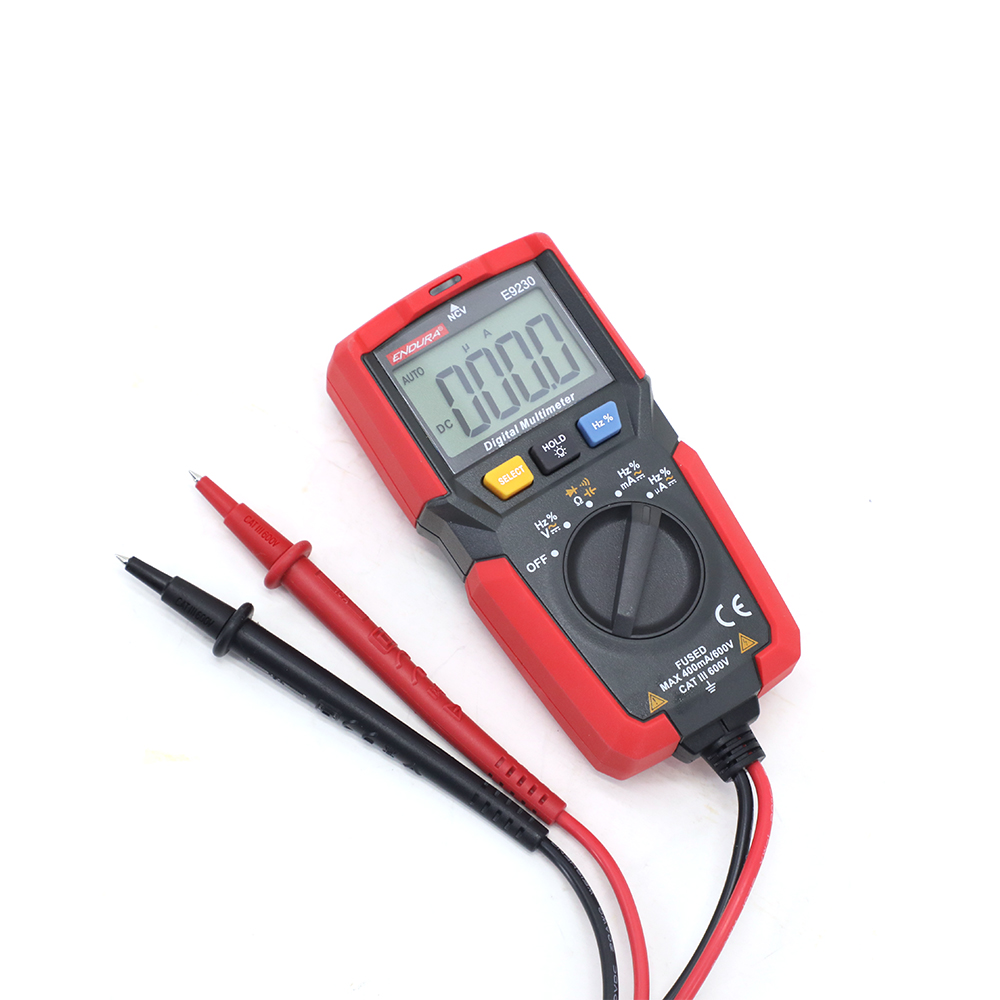

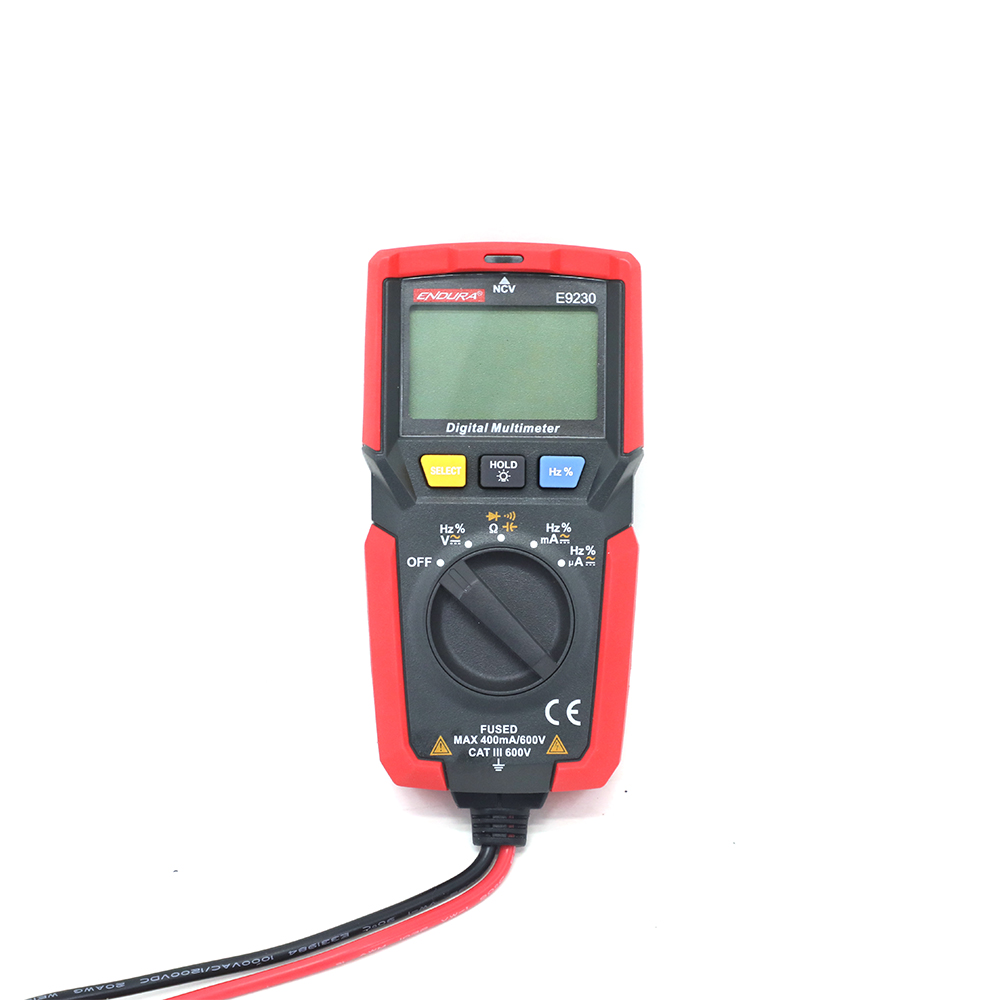

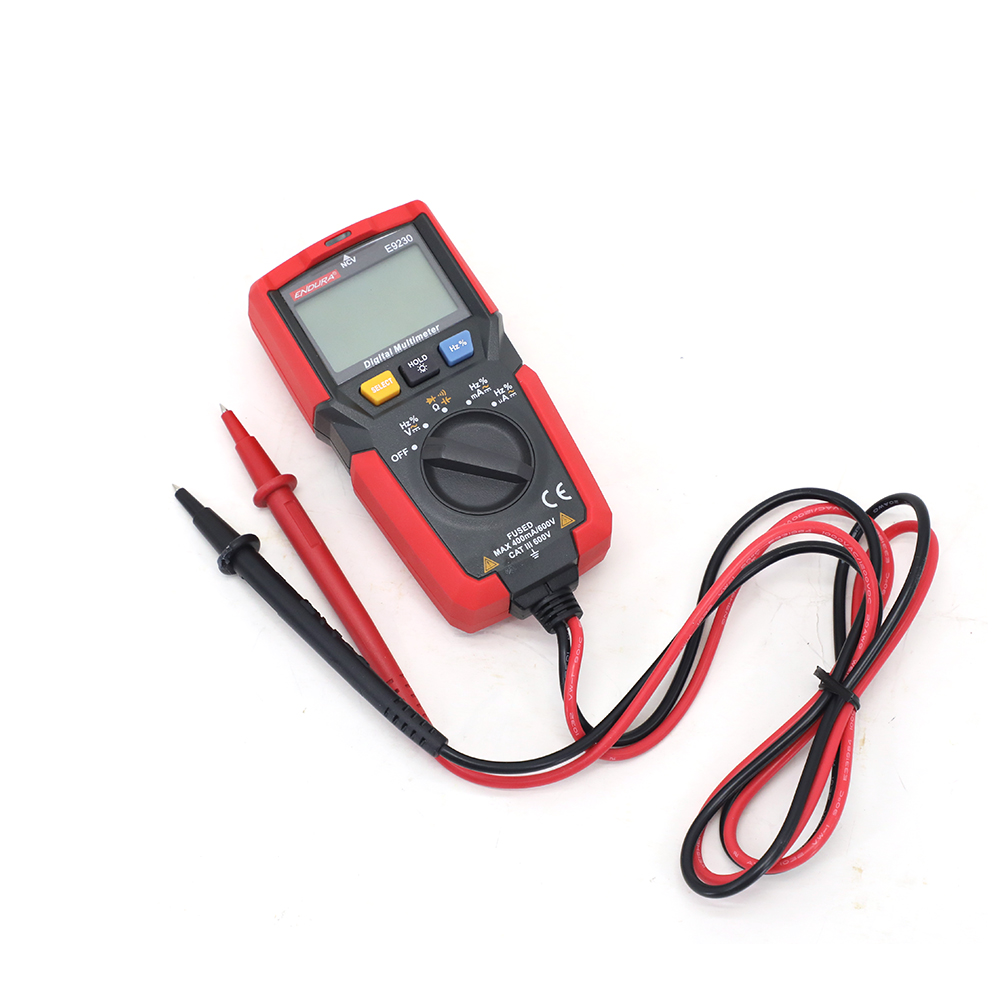

PORTABLE DIGITAL MULTIMETER

Product sheet Return to list
MAXIMUM READING:3999
RANGE (AUTO / MANUAL):Auto
DC VOLTAGE:400mV/4V/40V/400V/600V±(0.5%+5)
AC VOLTAGE:4V/40V/400V/600V±(2.0%+10)
DC:400μA/4000μA/40mA/400mA±(1.8%+5)
AC:400μA/4000μA/40mA/400mA±(2%+8)
RESISTANCE:400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ±(1.0% +5)
CAPACITANCE:50nF/500nF/5uF/50uF/100uF±(4% +10)±(0.1% +5)
FREQUENCY:10~60KHz
BATTERY:2x1.5V AAA battery
Exquisite and compact design
600V DC / AC voltage test 400mA DC/AC current test Resistance/Capacitance/OnOff/Diode
Test function、NCV function、BACKLIGHT function、DATA HOLD function、AUTOMATIC SHUT-DOWN function
Frequency/dutycycle measurement
CE (EMC, LVD, ROHS),cETLus
Safety level CAT III 600V
  • PART# CONTENTS
    (mm)
    WEIGHT
    (g)
    PACKING QUANTITY
  • E9230 112x58x35180(BARE METAL)1
