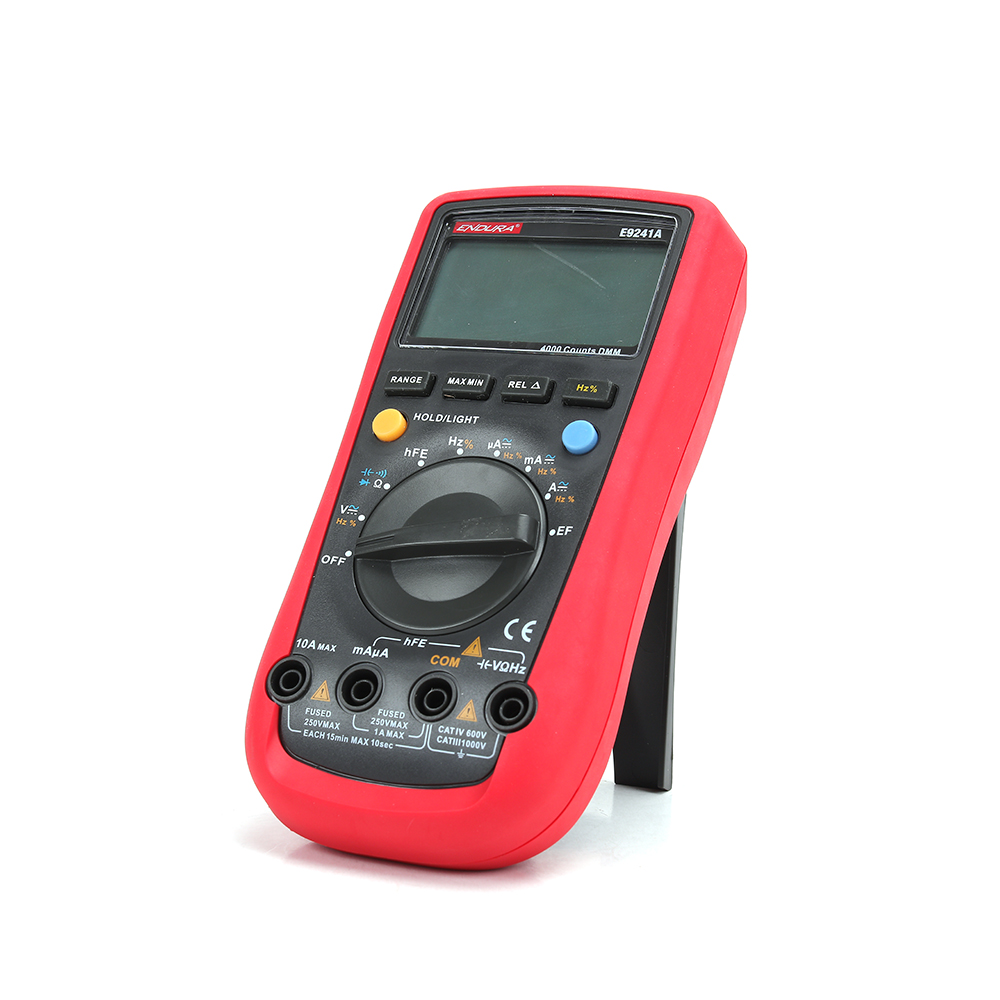

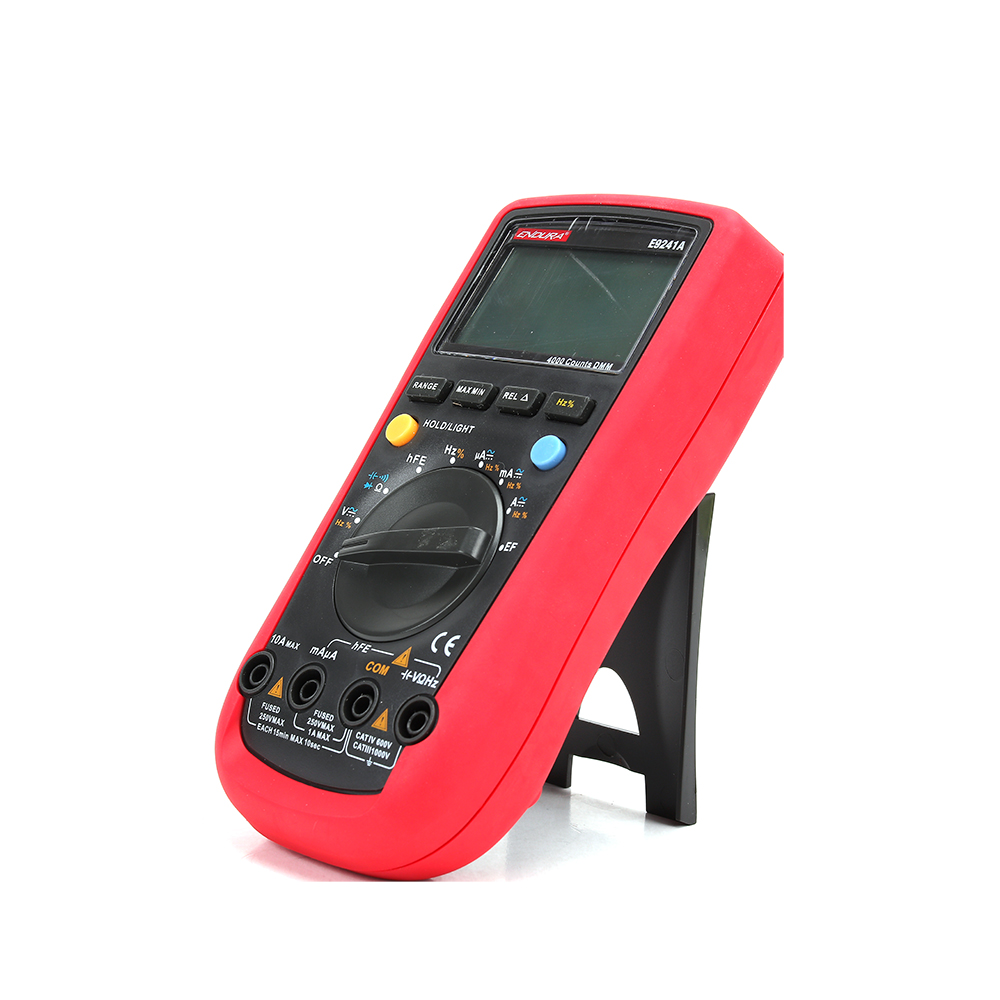

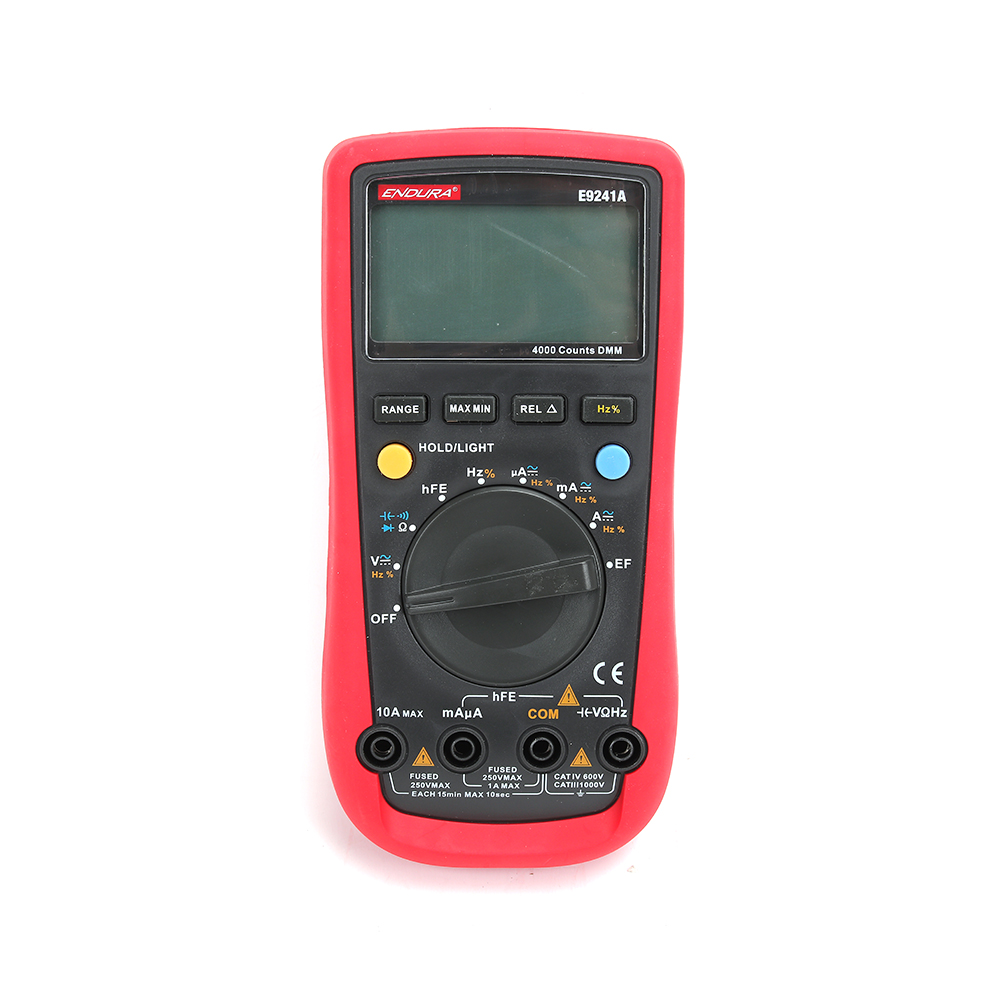

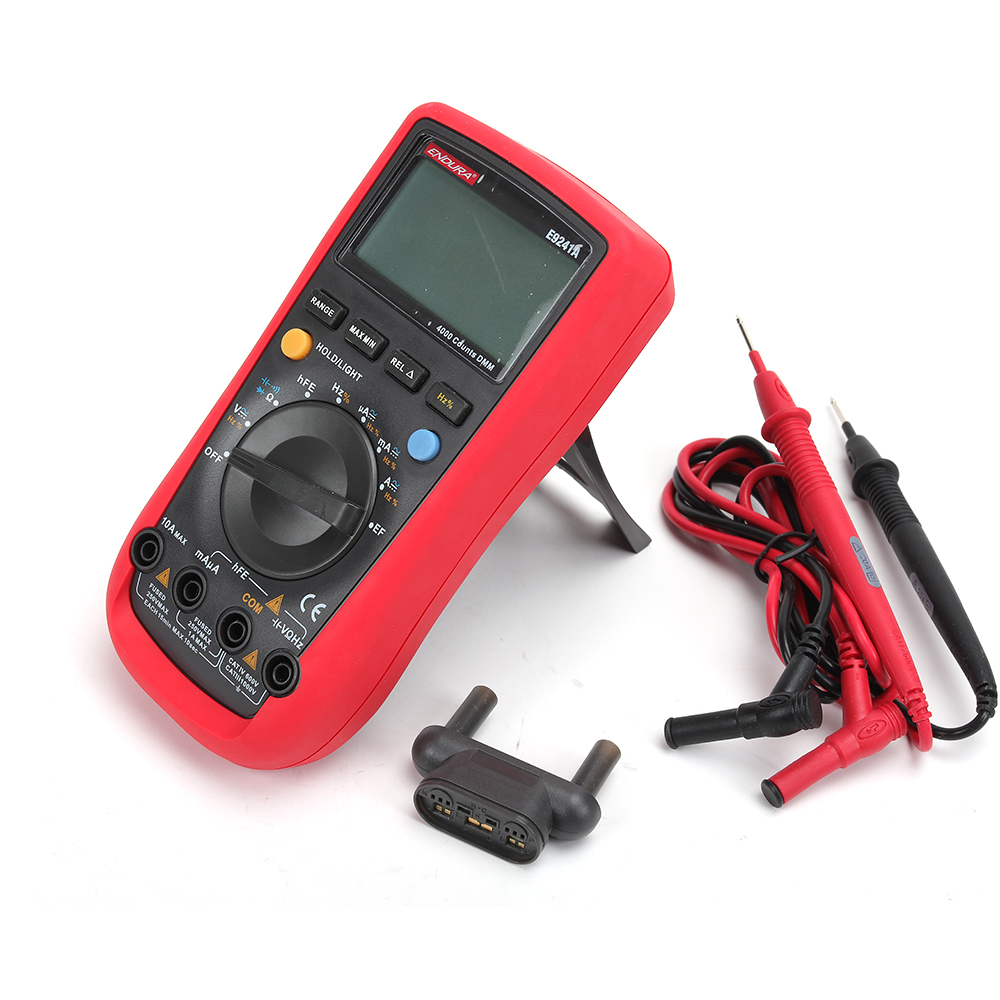

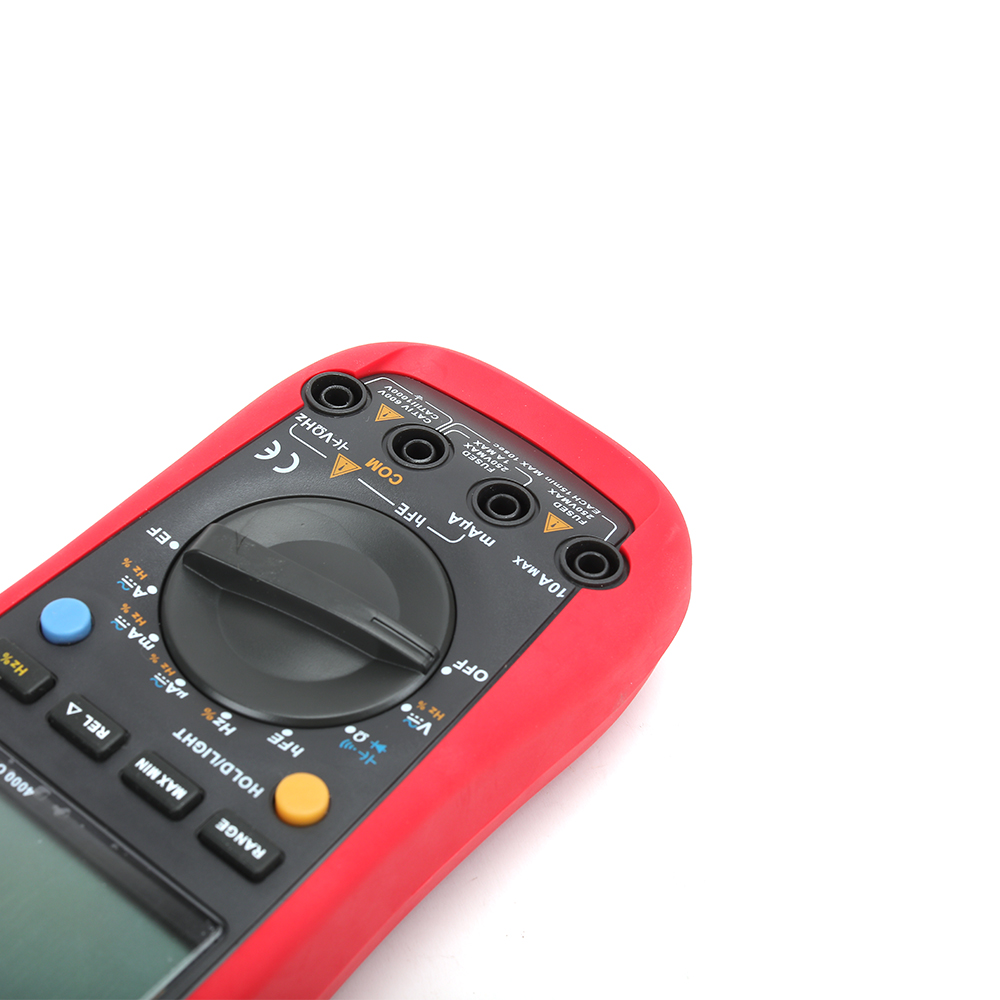

DIGITAL MULTIMETER

Product sheet Return to list

MAXIMUM READING:3999
RANGE (AUTO / MANUAL):Auto
DC VOLTAGE:400mV/4V/40V/400V/100V±(0.5%+1)
AC VOLTAGE:400mV/4V/40V/400V/750V±(1%+3)
DC:400μA/4000μA/40mA/400mA/4A/10A±(1%+2)
AC:400μA/4000μA/40mA/400mA/4A±(1.2%+5)
RESISTANCE:400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ±(1%+2)
CAPACITANCE:40nF/400nF/4μF/40μF/400μF/4000μF±(3%+5)
FREQUENCY:10Hz-10MHz±(0.1%+4)
BATTERY:6F22 9V
DIODE TEST、DUTY CYCLE、EF DETECTION、BACKLIGHT、DATA HOLD
Reliable,secure,autoranging,handheld
extra large screen , high resolution,simultaneous display
Full-range overload protection and unique appearance design, a new generation of practical electrician measuring instrument with better performance

  • PART# CONTENTS
    (mm)
    WEIGHT
    (g)
    PACKING QUANTITY
  • E9241A 180x87x47370(BARE METAL)1
