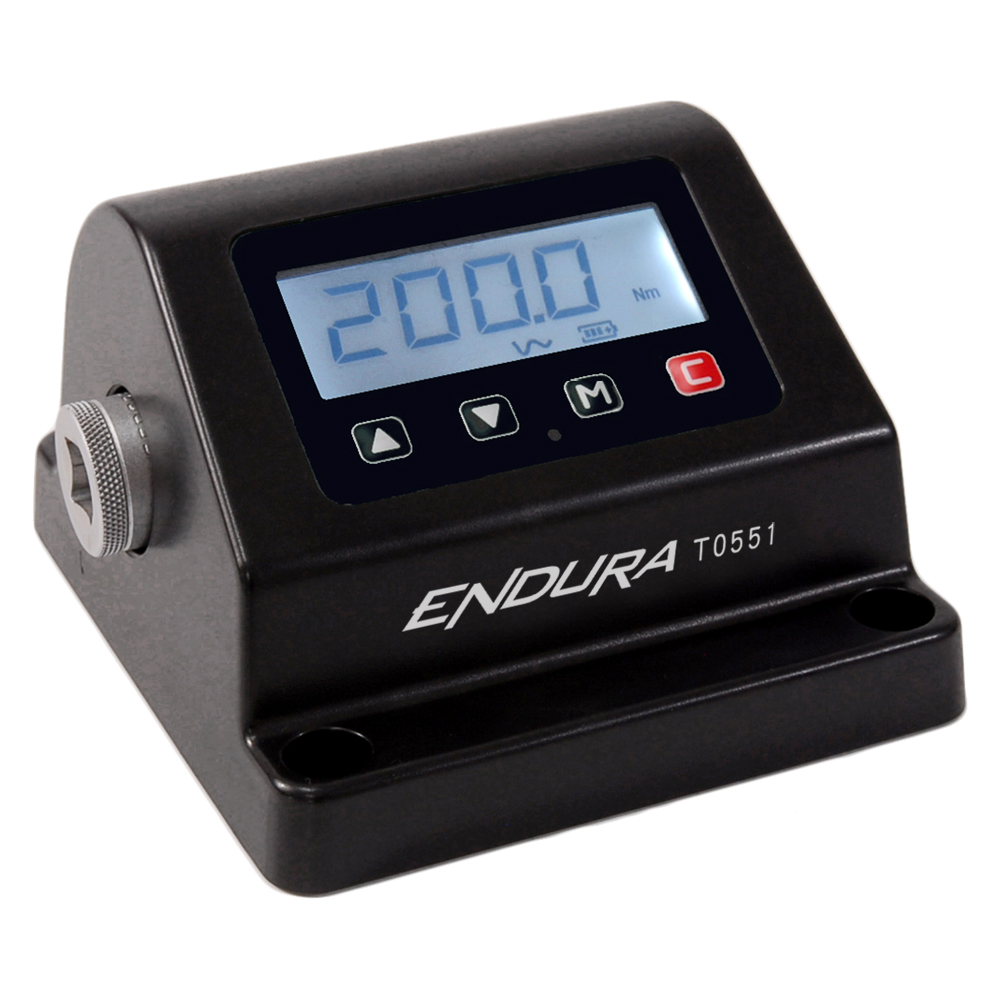

PORTABLE TORQUE TESTER

Product sheet Return to list

■ Three test modes are available: first peak mode, peak mode and tracking mode
■ In the first peak and peak mode, the highest value is held
■ When the set torque value is reached, there will be three-color lights and buzzer alarm
■ Accuracy ±1% (within 10%-100% of full load)
■ Switch among four units: N.m, Lb.ft, Lb.in, Kg.cm
■ With data storage function, 1500 groups of data can be stored as needed, each group includes time, unit and value
■ The display is backlit for easy operation in dark environment

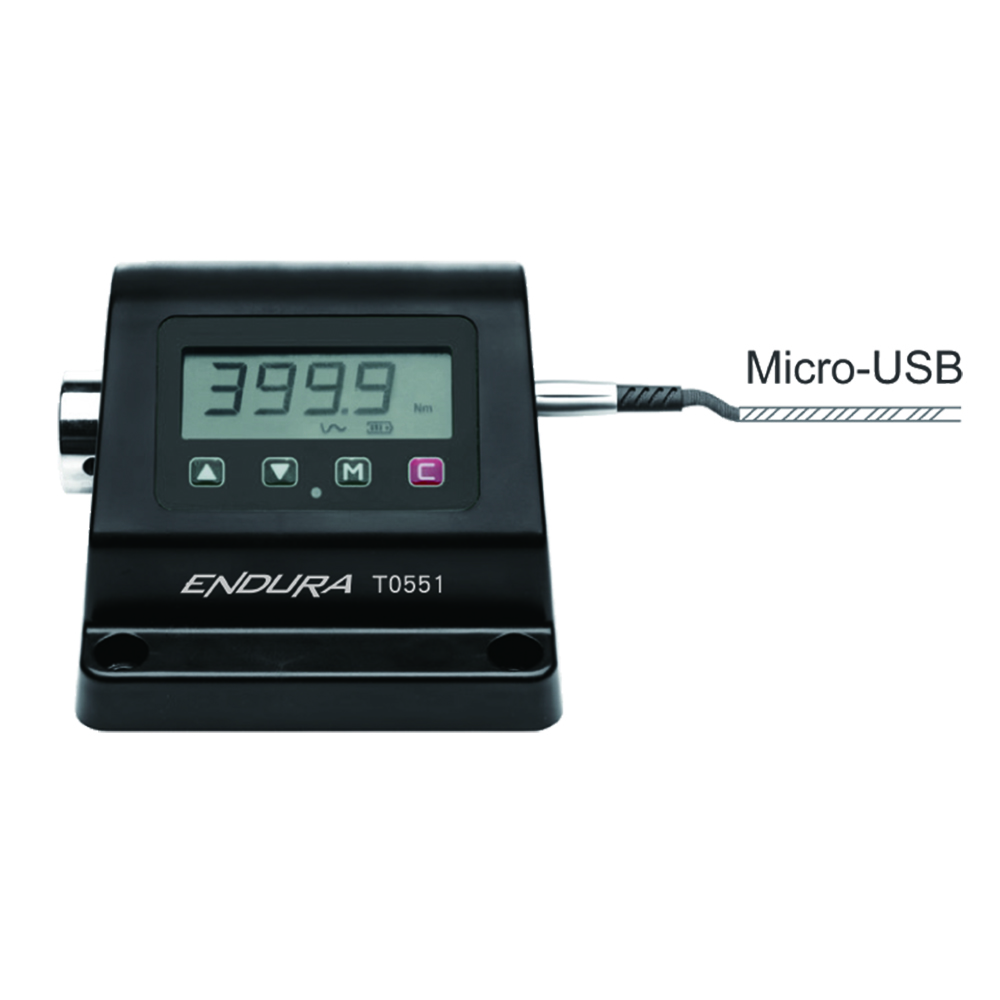

■ With a Micro-USB interface to upload data or charge

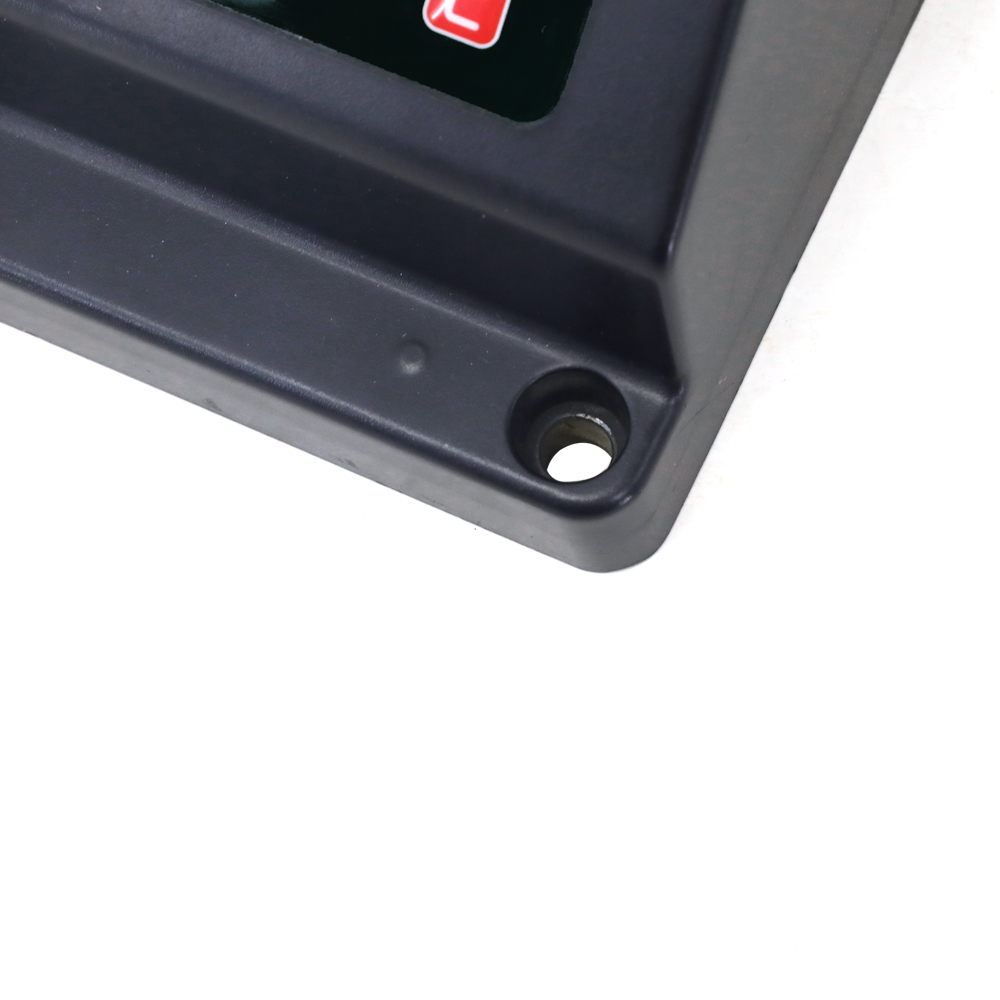

■ There are four bolt holes at the bottom, so the instrument can be fixed on the workbench or other bases
■ Built-in rechargeable lithium battery, which can be charged by plugging in the power adapter
■ Automatically shut down without any operation in 10 minutes

  • PART# CONTENTS
    (N.m)

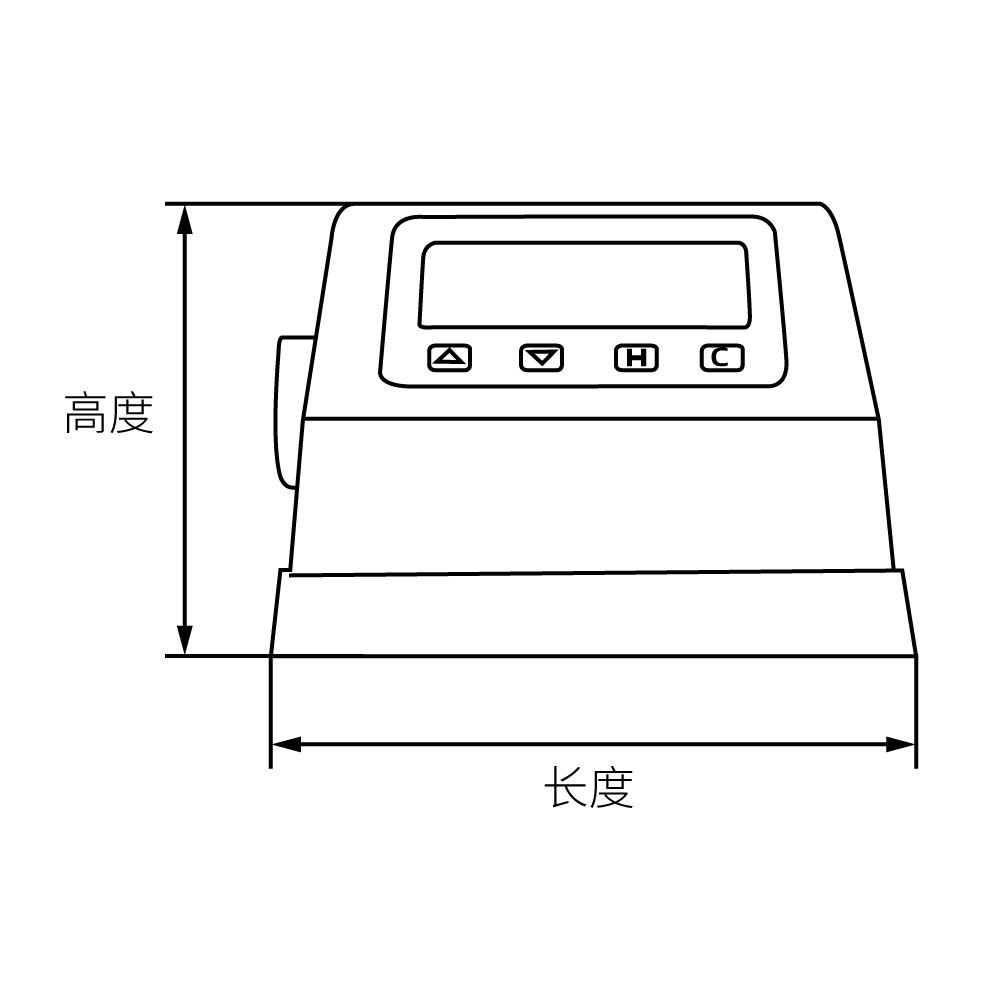

    LENGTH
    (mm)

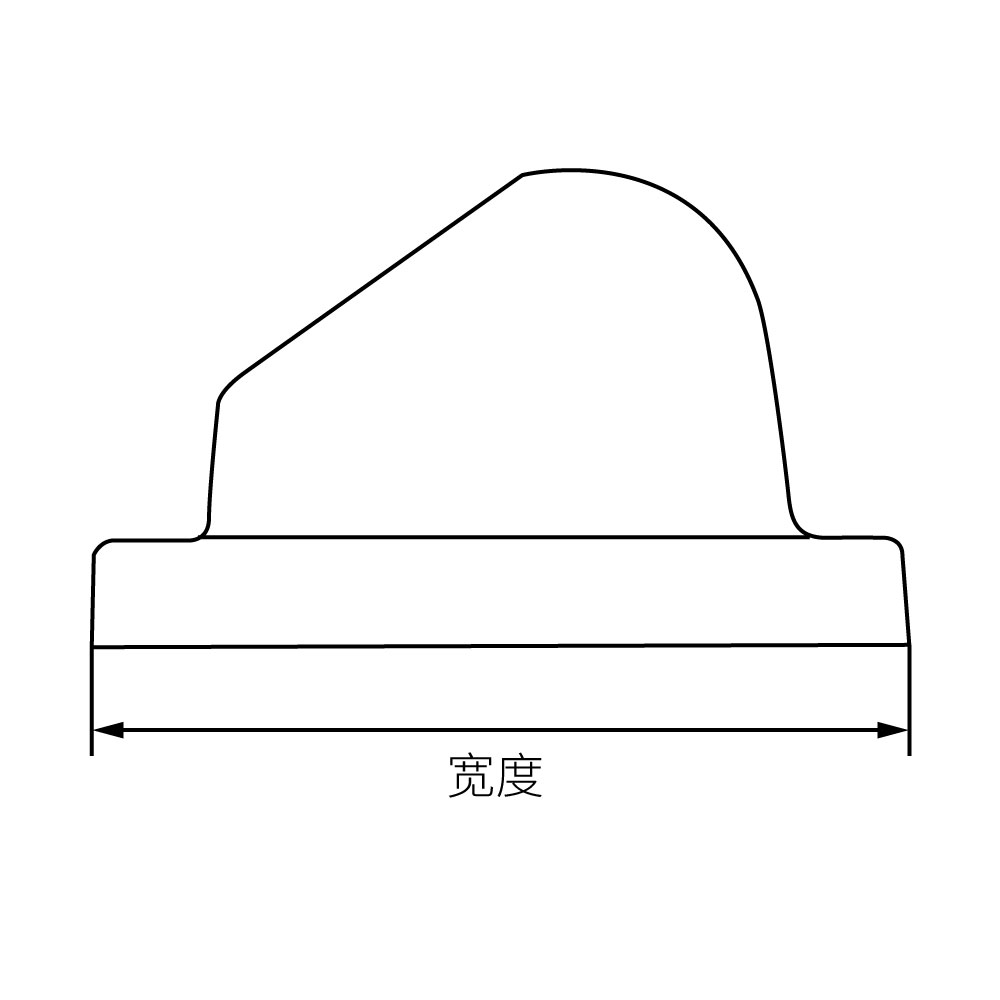

    WIDTH
    (mm)
    HEIGHT
    (mm)
    WEIGHT
    (kg)
    DRIVERACCURACYPACKING QUANTITY
  • T0551 1.2—12135136872.21/4"±1%1
  • T0552 2.5—25135152872.43/8"±1%1
  • T0553 4.0—40135152872.63/8"±1%1
  • T0554 7.5—75135152872.83/8"±1%1
  • T0555 15—150135152872.91/2"±1%1
  • T0556 25—250135152873.11/2"±1%1
  • T0557 40—400135152873.21/2"±1%1
  • T0558 65—650135152873.23/4"±1%1
  • T0559 110—1100135152873.43/4"±1%1
