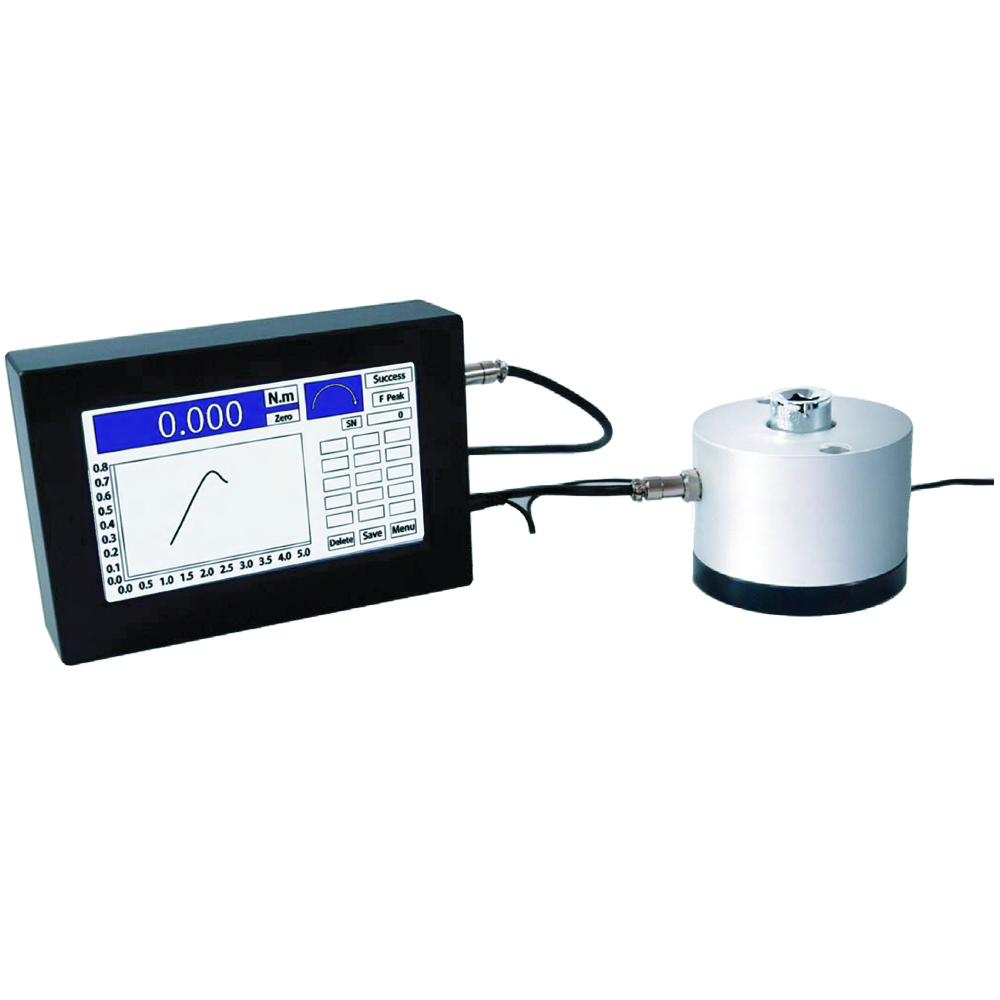

TORQUE TESTER

Product sheet Return to list
■ Accuracy ±0.5% (within 10%-100% of full load)

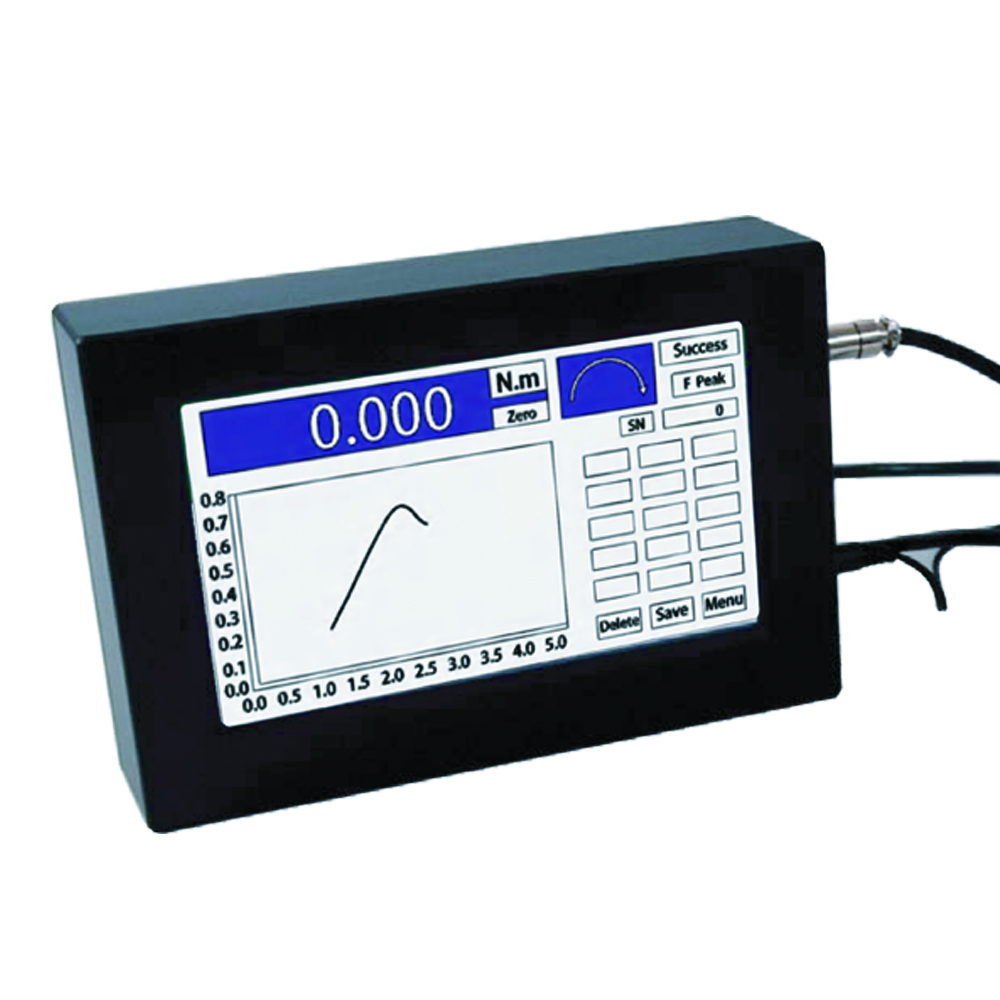

■ 7-inch color touch screen, simple menu, easy to operate
■ Chinese and English languages
■ Eight types of torque units: N.m, cN.m, kgm, ckgm, gm, Lb.ft, Lb.in, Oz.in
■ Three test modes are available: first peak, peak and tracking mode
■ Three interface options: regular, preset, waveform
■ During the test, 15 test data will be automatically recorded
■ Can store 5000 data, preset 100 groups of parameters
■ During continuous testing, it will be automatically cleared
■ Alarm when overload

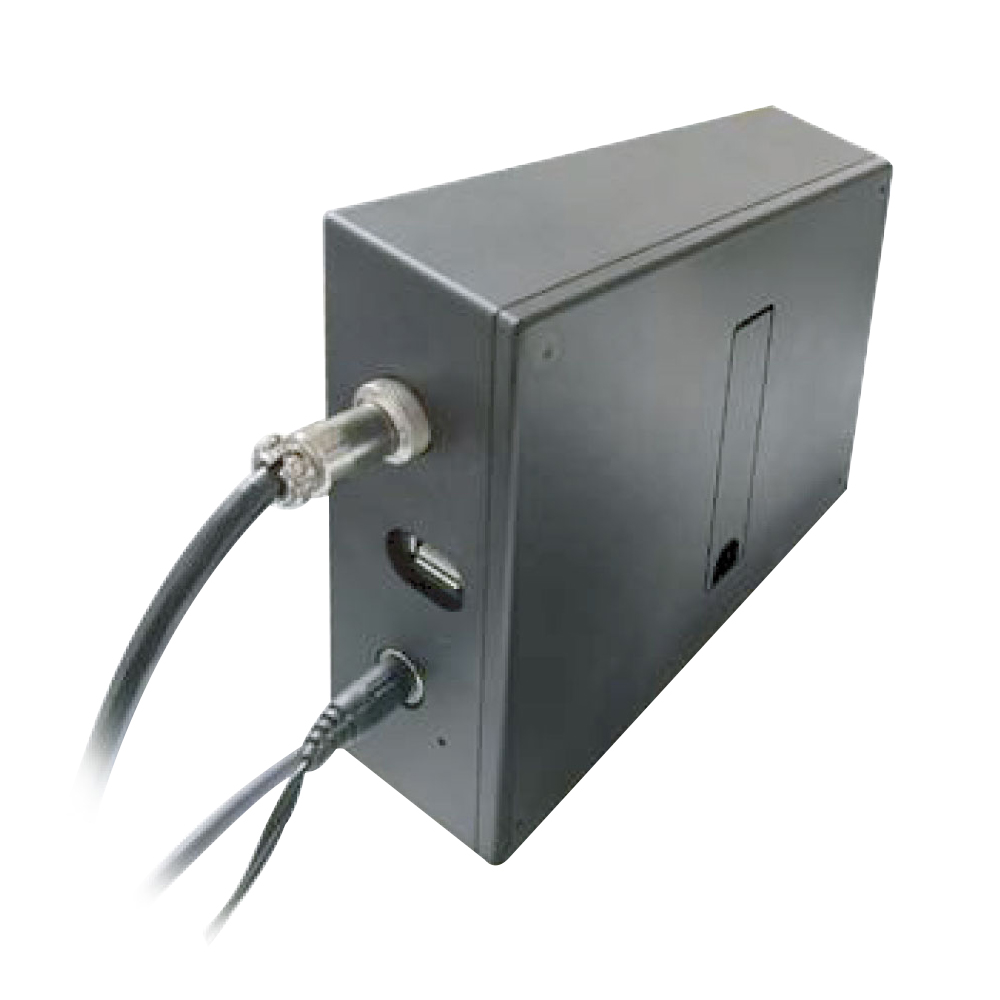

■ With USB interface to upload data

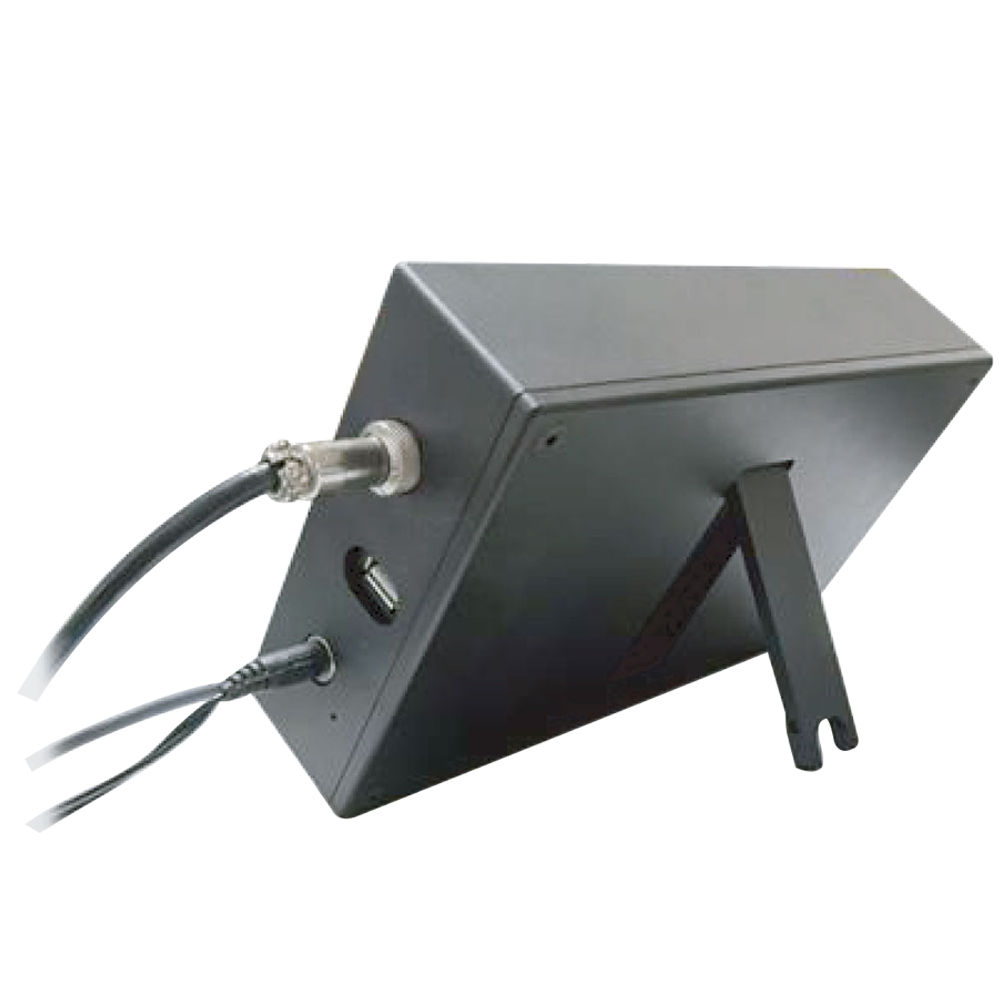

■ Embedded feet on the back to support tilted screen
  • PART# CONTENTS
    (N.m)
    HEIGHT
    (mm)
    WEIGHT
    (kg)
    DRIVEROUTER DIAMETER
    (mm)
    MATCHABLE TEST FRAMEPACKING QUANTITY
  • T0571 1.2—12772.11/4"102T05411
  • T0572 2.5—25772.33/8"102T05411
  • T0573 4.0—40772.333/8"102T05411
  • T0574 7.5—75772.373/8"102T05411
  • T0575 15—150772.441/2"102T05411
  • T0576 25—250772.521/2"102T05411
  • T0577 40—400772.441/2"102T05421
  • T0578 65—6501162.543/4"120T05421
  • T0579 125—12501282.733/4"120T05431
